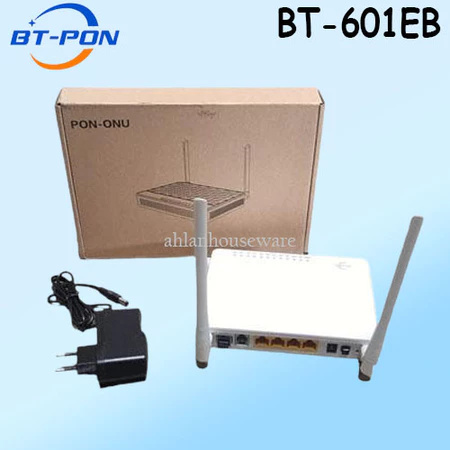

Modem Fiber Optik BT-PON EPON ONT BT-601EB | ONU Router WiFi Internet Cepat

Support OLT BT-PON , HIOSO dll

Brand Name:BT-PON

super user pakai user: admin password: v2mprt

Size:28*15*5.5CM

Power supply:12V 1.5A

Product Specification

Hardware Specifications

Size(L*W*H)

165mm (L) 162mm (W) 28mm (H)

Optical signal access

1*EPON

User interface

4FE+VOIP+2.4G WLAN+1USB

Indicator light

POWER/WPS/WLAN/USB/LAN1/LAN2/LAN3/LAN4/TEL/INTERNET/LOS/PON

Button

Power switch Button, Reset Button, WLAN Button, WPS Button

Weight

300g

Power adapter input

100V~240V AC,50Hz~60Hz

PowerSupply requirement

12V DC,1.5A

Power consumption

<10w

Working temperature

-10°C ~ +45°C

Environment humidity

5% ~ 95% (Non-condensing)

PON Interface

Module type

SFP PX20+ SC/PC

Working wavelength

up 1310nm,down 1490nm

TX Optical power value

0.5~4dBm

RX Optical power sensitivity

-27dBm

Transmission distance

0~20km

Transmission rate

Uplink 1.244Gbps;downlink 1.244Gbps

Ethernet interface

Interface type

RJ45

Interface parameters

1*10/100/1000Mbps and 3*10/100Mbps or 4*10/100Mbps auto adaptive Ethernet interfaces

Wireless

Working mode

IEEE 802.11 b/g/n

Antenna pattern

2T2R External antenna

Antenna gain

5dBi

Wireless bandwidth

Support 20MHz/40MHz

Interface rate

Maximum rate 300Mbps

SSID

Up to 4 SSID broadcasts are supported

POTS interface

Interface type

1* RJ11

Voice agreement

SIP

Codecs
